Hinges • ELocks for Glass Cases / Hinges for Glass Doors
Compact finish with high accuracy and high performance : Furthermore, higher load capacity than the former models.

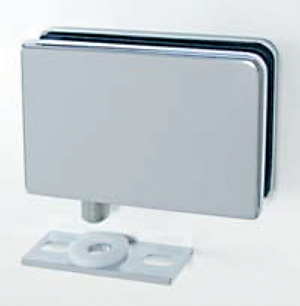

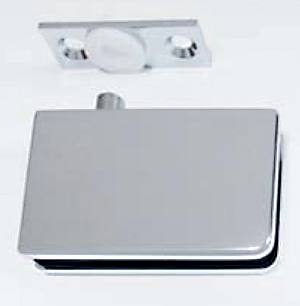

Hinges for Glass Cases (60 mm)
TTS-5041 (For glass having 5 ~ 6 mm thickness)
|
- Load capacity : 12 kg
- In case of glass thickness at 5 mm : The suitable packing is 1 mm.
- In case of glass thickness at 6 mm : The suitable packing is 0.5 mm.
- Top and bottom symmetry type
|

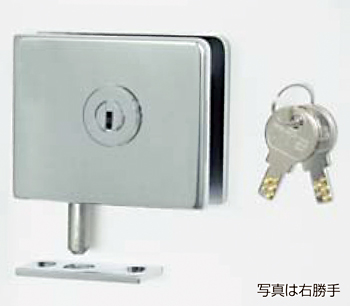

Locks for Glass Cases
TTS-5045 (For glass having 5 ~ 6 mm thickness)
|
- We have locks for both right-hand door and left-hand door, and this model can be applied to wide range of glass thickness.
- We can also provide customized colors.
- In case of glass thickness at 5 mm : The suitable packing is 1 mm.
- In case of glass thickness at 6 mm : The suitable packing is 0.5 mm.
|

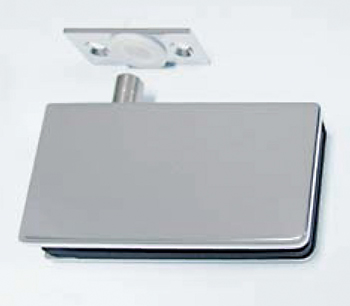

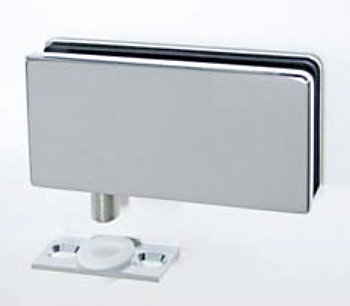

Hinges for Glass Cases (100 mm)
TTS-5042 (For glass having 8 ~ 10 mm thickness)
|
- Load capacity : 30 kg
- In case of glass thickness at 8 mm : The suitable packing is 1.5 mm.
- In case of glass thickness at 10 mm : The suitable packing is 0.5 mm.
- Top and bottom symmetry type
|

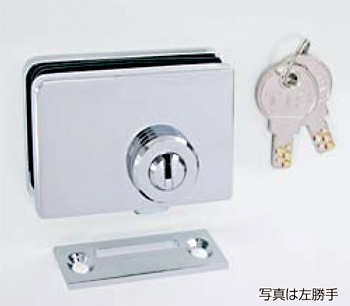

Locks for Glass Cases
TTS-5046 (For glass having 8 ~ 10 mm thickness)
|
- We have locks for both right-hand door and left-hand door, and this model can be applied to wide range of glass thickness.
- We can also provide customized colors.
- In case of glass thickness at 8 mm : The suitable packing is 1.5 mm.
- In case of glass thickness at 10 mm : The suitable packing is 0.5 mm.
|
Hinges for Glass Cases (125 mm)
TTS-5047 (For glass having 10 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- In case of glass thickness at 10 mm : The suitable packing is 2.0 mm.
- In case of glass thickness at 12 mm : The suitable packing is 1.0 mm.
- Top and bottom symmetry type
|

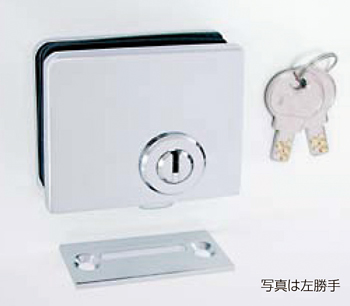

Locks for Glass Cases
TTS-5048 (For glass having 10 ~ 12 mm thickness)
|
- We have locks for both right-hand door and left-hand door, and this model can be applied to wide range of glass thickness.
- We can also provide customized colors.
- In case of glass thickness at 10 mm : The suitable packing is 1.5 mm.
- In case of glass thickness at 12 mm : The suitable packing is 0.5 mm.
|
